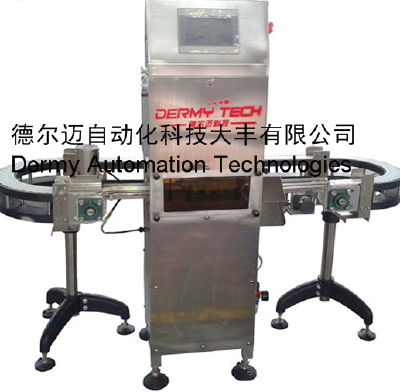

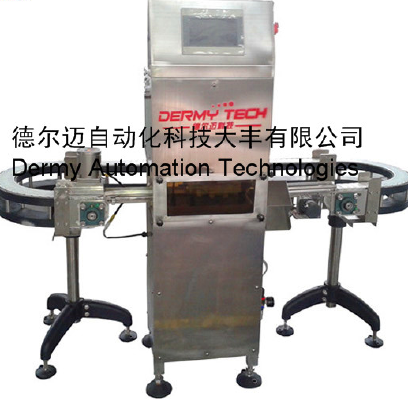

Del Mai weight sorting machine for automated assembly line by the products of online weighing, can detect the weight of products qualified, overweight, less weight, the product through count, and the automatic sorting device to eliminate substandard products. According to the site production line requirements of customization, configuration automatic barcode scanning and printing systems, and automatic filling machine, automatic packaging machine, metal detector, etc. supporting.
main features
Reinforced stainless steel frame, comprehensive waterproof design
Using high precision sensor, digital signal processing technology based on advanced high speed
Dynamic weight automatic compensation technology, automatic zero point analysis and tracking technology
100 product design, easy to edit and store
Fast product switching and automatic adjustment of the relative product sorting speed
U disk to store all the detected data
Friendly operation interface based on touch screen
Mainly suitable for bags, boxes, tablets and other products
With on line detection function (optional)
technical parameter
Weight sensor
Removing device for air blowing / push rod (single) / fall type (columns)
Operation mode touch screen or man-machine interface
Alarm mode buzzer and alarm lamp (optional)
Conveyor speed 40~60 M / min
Power 50-60Hz AC110V/220V
Power 100W
Belt size W158mm*L1000mm
