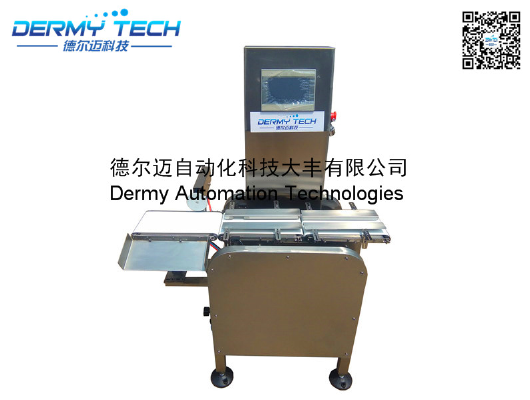

Del Mai weight sorting machine for automated assembly line by the products of online weighing, can detect the weight of products qualified, overweight, less weight, the product through count, and the automatic sorting device to eliminate substandard products. According to the site production line requirements of customization, configuration automatic barcode scanning and printing systems, and automatic filling machine, automatic packaging machine, metal detector, etc. supporting.
main features
Reinforced stainless steel frame, comprehensive waterproof design
All contact parts are made of food grade materials to ensure that the product will not be contaminated.
Using high precision sensor, advanced digital signal processing technology
Dynamic weight automatic compensation technology, automatic zero point analysis and tracking technology
100 product design, easy to edit and store
Fast product switching and automatic adjustment of the relative product sorting speed
USB large capacity storage, inspection records at any time access to
Intuitive and easy to use man-machine interface to reduce operator training time and cost
technical parameter
Weight sensor
Removing device air injection / pneumatic arm / pneumatic push rod / drop type (optional)
Operation mode touch screen or man-machine interface
Conveyor speed of 60 m / min
Power 50-60Hz AC110V/220V
Power 100W
Exterior size 944mm (L) *638mm (W) *1332 50mm (H)
Weight of about 70kg
